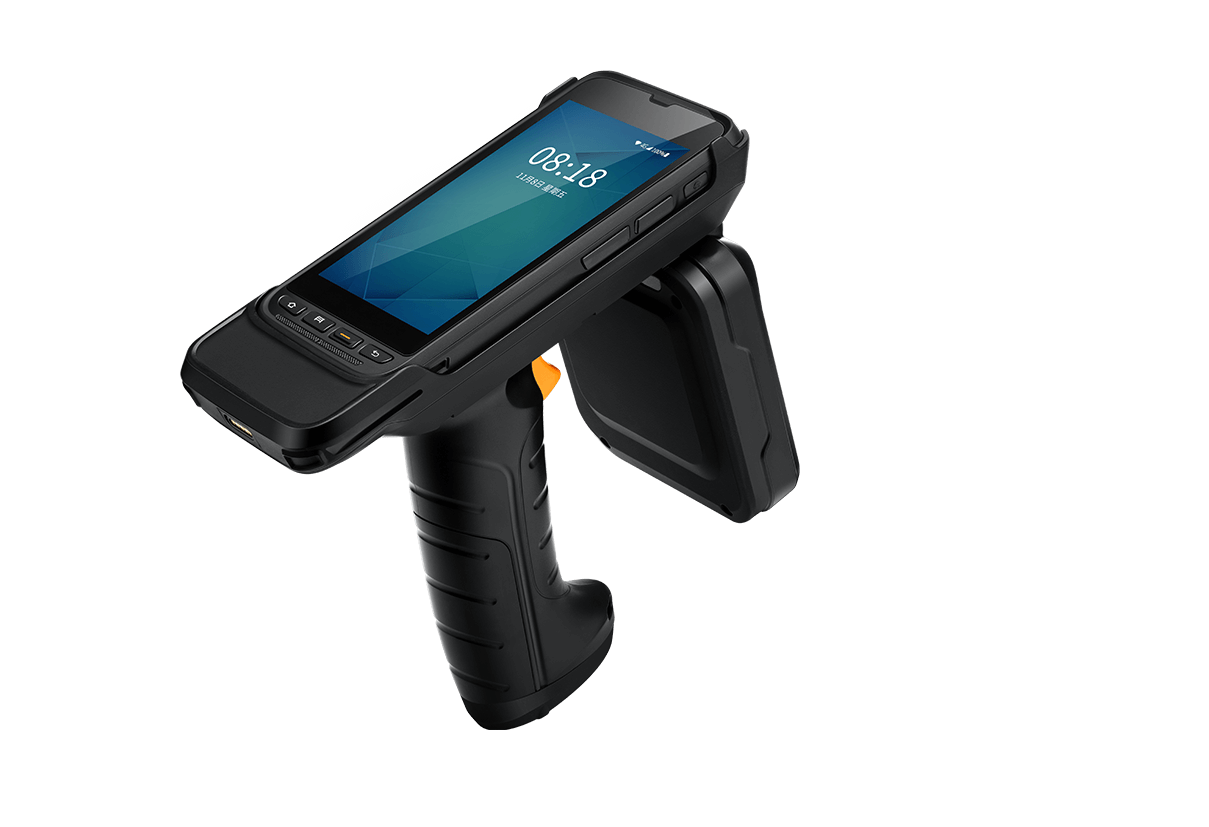

ultra high frequency smart computer
Using rechargeable dual system，
built-in PDA 3600mAh battery plus gun handle 5200mAh battery,
can provide continuously more than 12 hours of work with the handle state，
to ensure that the equipment working normally for 7X24
can be purchased separately.
| System Configuration | |
| Processor | Octa-core 2.0 GHz |
| Operating system | Android 9.0 |
| Memory (ROM+RAM) | 16 GB +2 GB (optional 128GB+ 6GB/64GB+ 4GB/32GB + 3GB) |
| SIM | Single SIM card |
| Expansion slot | Micro SD card, up to 256 GB |
| Display screen | 4.7 inch, 1280 x 720 high resolution |
| Touch screen | Industrial capacitive screen, supporting two-point touch + gesture operation |
| Camera | 8 MP autofocus camera in the back side (13 MP optional), 5MP front camera optional |
| Flashlight | 800mA flashlight |
| Keyboard | 9 keys in total, front key*4, side scan key*2, side custom key*2, side power key*1 |
| Battery | Host: Lithium battery 3.85V power supply, 4000mAh, non-removable Handle: Lithium battery 3.6V power supply, 5200mAh, detachable *Executive standard: GB31241-2014 |
| Audio | Built-in microphone |
| Charging | Type-C charging and pin port charging, 18W fast charging |
| Charging | Type-C charging and pin port charging, support 24W fast charge |
| Vibrating motor | Built-in programmable vibration motor |
| Prompts | Vibrator alerts/LED/Audio notification |
| Sensor | G-Sensor/Proximity sensor/Light sensor |
| Intercom function (optional) | Supporting one-button PTT calls |
| Structure parameters | |
| Dimension (LxWxD) | PDA + pistol grip：175mm x 89mm x 165mm |
| Weight | PDA（include battery）+ pistol grip（with RFID）710g PDA（include battery）+ pistol grip（without RFID）530g |
| Communication transmission | |
| Wireless wide area network (Network frequency) |
Asia & Europe： 2G：B2/B3/B5/B8 3G：WCDMA：B1/B2/B5/B8 CDMA BC0 TD-SCDMA:B34/B39 4G：FDD-LTE：B1/B3/B7/B8/B20 TDD-LTE：B34/B38/B39/B40/B41 America： 2G: B2/B3/B5 3G: B1/B2/B4/B5; CDMA BC0/BC1 (U.S.A) 4G: B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41 |
| Wireless wide area network (Data service) |
GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE |
| WLAN | Wi-Fi 802.11ac/a/b/g/n/r 5G PA (Dual-band Wi-Fi:2.4G+5G) |
| Bluetooth | Bluetooth 5.0 |
| GPS | GPS/AGPS/Beidou Compass/Galileo/Glonass |
| Operating Environment | |
| Working temperature | -20℃~60℃ *For your safety, please do not charge in a low temperature environment |
| Storage temperature | -40℃~70℃（Without battery） |
| Humidity | 0%～95% (no condensation) |
| Drop specification | 1.5m marble floor dropped several times |
| Protection level | IP65 |
| Electrostatic protection | ±15KV (air discharge), ±8KV (contact discharge) |
| Scan engine | |
| Barcode | Support 1D/2D scanning engine |
| Scanning accuracy | ≥3.33mil |
| Scanning angle | Tilt ±60°, deflection ±60°, rotation 360° |
| Angular Field of View | Horizontal: 44.3°; Vertical: 28.4°; Diagonal: 51° |
| Motion tolerance | 8m/s |
| NFC (Optional) | |
| Frequency | 13.56MHz |
| Reading distance | Within 30mm |
| Communication protocol | ISO14443A/14443B/15693 |
| UHF RFID | |
| Protocol | ISO18000-6C/EPC Class1 Gen2 |
| working frequency | 920MHz~925MHz |
| Power output | 5~30dBm |
| Antenna | Circular polarization antenna |
| Reading distance | Up to 10m |
| Reading rate | Up to 700tags/s |
| Input/output Interface | |
| USB interface | Type-C (with earphone function) *1 |
| PIN interface | Pin interface (back of device) *1 |
| OTG interface | Supporting |
| Development support | |
| Development language | Java |
| API | iScan API (Scan Development Kit), Device API (Device Management/Configuration Development Kit), Android standard interface |
| Development tool | Eclipse/Android Studio |
| Accessories | |
| Standard accessories | Battery*1, Power adapter*1, 3 in 1 cradle*1, USB cable*1 |
| Optional accessories | Handle debug cable |
| Note | |
| 1 | As the product line is updating from time to time, the information in this document is subject to change without notice. |
