Excellent Performance, Smart and Rugged
| System Configuration | |
| Power | USB (5V/0.5A), DC(12V~24V), POE (802.3af 13W), POE+ (802.3at 25.5W) |
| Max. working current | 0.5A (USB powered), 0.95A (POE or power adapter powered) |
| Standby current | 0.1A |
| Prompt | Buzzer: Prompt when power on; Prompt when reading tags(can be configurated) PWR: Power light (constant red when power on); Bluetooth light: Blue light on when connected; Blue light off when disconnected; Working prompt: Flashing green light when it is working |

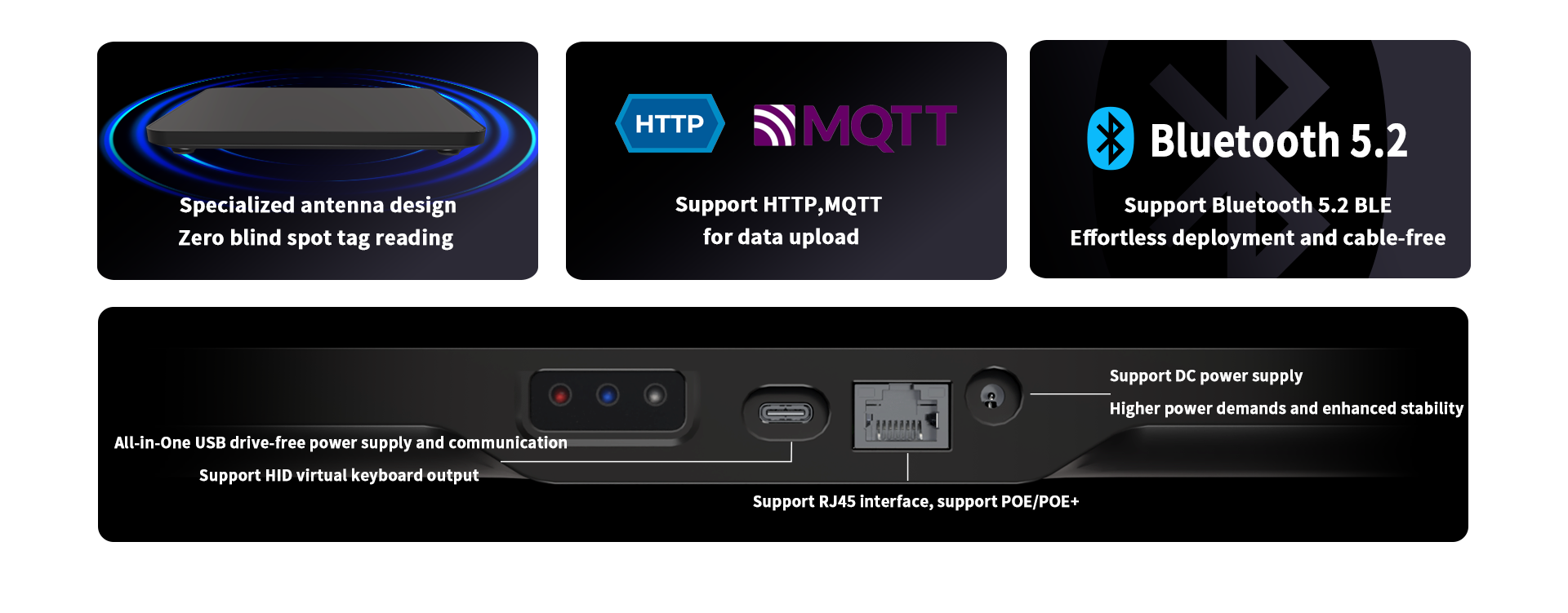

| Communication interface | Type-C USB2.0, RJ45 Ethernet port (10/100M), Bluetooth 5.2 |
| API support | Android, JAVA, C#(.NET), C++(VC) |
| UHF RFID | |
| Communication protocol | EPC global C1Gen 2（ISO 18000-6C） |
| Impinj Gen2X | support |
| Frequency | FCC 902MHz~928MHz (USA) CE 865MHz~867MHz (EU) CN 920MHz~925MHz (China) 860-960MHz (customizable) |
| Output power | 0-27dBm，1dBm adjustable (USB powered) 0-33dBm, 1dBm adjustable (powered by POE or power adapter) |
| Antenna | Near Field Antenna |
| Reading distance | 0-50cm |
| Writing distance | 0-20cm |
| Structure Parameters | |
| Size (H * W * D) | 320mm*320mm*28mm（L*W*H） |
| Weight | 1KG |
| Colour | Black |
| Environmental Parameters | |
| Working temperature | -25℃～+65℃ |
| Storage temperature | -40℃～+85℃ |
| Humidity | 5%~95% (no condensation) |
| IP rating | IP65 |
| Anti-static | Contact discharge ± 4KV, air discharge ± 8KV |
| Accessories | |
| Standard | TYPE-C USB cable 1m |
| Optional | DC 12V 2A power adapter |
| Note | |
| ****** | As the product line is updating from time to time, the information in this document is subject to change without notice. |
