iData i3 Pro

Portability upgraded again, enhancing the order
fulfillment of warehouse and logistics workers


Lightweight and Portable with Outstanding Ergonomic Design


Only 238g in weight, the device features a lightweight shell and a streamlined fluted design on the back, making it easy to grip while engaging in activities such as handling, sorting, and item placement. The separated button design significantly reduces the accidental button pressing, ensuring a smoother workflow.


Optimized Scanning Tilt
Angle for Enhanced
Efficiency in Warehouse
and Logistics Operations


Equipped with the latest self-developed scanning engine by iData,
the device boasts an extended scanning distance (up to 120cm for
20mil barcode scanning) and faster decoding speed (up to 300+
/min), greatly improving scanning efficiency. The unique 27°
scanning tilt angle design makes it easier for warehouse and
logistics workers to scan barcode information on goods, shelves,
and express boxes as well as confirming details, thereby
enhancing overall operational efficiency.

/uploads/ueditor/image/product/i3Pro/20240415105211_778509.png

Durable and Sturdy,
Effectively Reducing
Downtime Risks

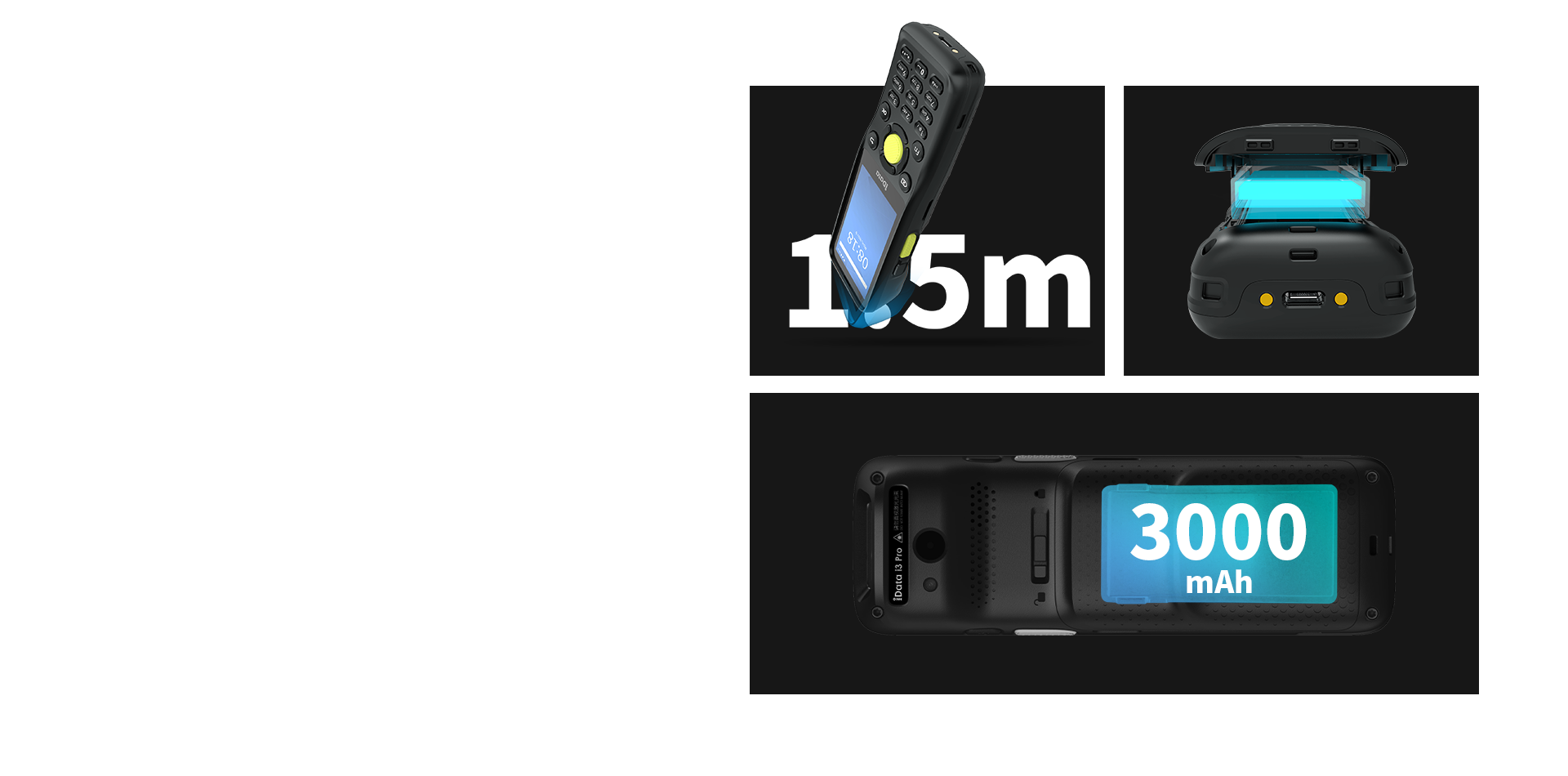

With a 1.5-meter drop resistance, the device addresses the
concerns about collisions and drops during handling and sorting
tasks, reducing the risk of downtime due to malfunctions.
Featuring a 3000mAh removable battery, the device can work non
-stop by replacing the battery when running low, making it
competent to work in long-shift scenarios.

i3 Pro Specifications

System Configuration
Processor Quad-core 2.0GHz high-performance processor
Operating System Android 10.0
Memory (ROM+RAM) 32GB + 3GB (standard), 64GB+4GB(optional)
SIM Single SIM card
Display Screen 3.2-inch, resolution: 800*480 pixels
Touch Screen Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation
Camera 8 megapixels rear camera (optional 13 megapixels), support auto-focus
Flashlight 800mA flashlight
Keypad 25 keypads in total: front key *21, side scan key *2, side power key *1, side custom key * 1
Battery 3.85V lithium battery, with 3000mAh, detachable
Audio Built-in microphone
Charging Method Type-C charging, support 18W fast charging
Reminder High power speaker reminder/vibration reminder/ LED reminder/Audio reminder
Vibrating Motor Built-in vibrating motor
Sensors G-sensor
Intercom Function
(Optional)
Support one-button PTT calls
Structure Parameter
Dimension(L*W*D) 166mm*54mm*23.9mm
Weight 238g (battery included)
Communication Transmission
WWAN
(Network Frequency)
China & Eurasian version:
2G:B2/B3/B5/B8
3G:WCDMA:B1/B5/B8
4G:FDD-LTE:B1/B3/B5/B7/B8/B20,TDD-LTE: B34/B38/B39/B40/B41 American version:
2G:B2/B3/B5
3G:B1/B2/B4/B5
4G:B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41
WWAN
(Data Service)
GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TDD-LTE/FDD-LTE
WLAN Function Wi-Fi 802.11 a/b/g/n/r/ac(2.4G+5G dual-band Wi-Fi)
Bluetooth Bluetooth 5.0, support BLE
GPS GPS/AGPS/BDS/Galileo/GLONASS/QZSS
Environmental Parameter
Working Temperature -20℃ -60℃
*Do not charge in low temperature conditions
Storage Temperature -40℃ -70℃ (battery exclusive)
Humidity 0 -95% (no condensation)
Drop Specification Multiple drops resistance from the height of 1.5m
Ingress Protection IP54
ESD Protection ±15KV (air discharge), ±8KV (contact discharge)
Scanning Engine
Barcode Type It can scan one-dimensional / two-dimensional barcodes
Scanning Accuracy ≧3.33mil
Scanning Angle Pitch: ±60°;Skew:±45°;Tilt:360°
View Angle Horizontal:44.3°,Vertical:28.4°,Diagonal:51°
Motion Error Tolerance 8m/s
NFC (Optional)
Working Frequency 13.56 MHz
Reading Distance Within 20 mm
Communication Protocol ISO14443A/14443B/15693
Communication Interface
USB Interface Type-C (with headset function) *1
OTG Interface Support
Development Support
Programming Language Java
Development API iScanAPI (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface
Development Tool Eclipse/Android Studio
Accessories
Standard Accessories USB cable*1, hand strap *1, power adapter*1, battery *1
Optional Accessories Power adapter (fast charging), 2-in-1 chargingcradle, 4-slot batterychargingcradle,multifunctional5-slotcradle,handstrap, protectivefilm,protectivecase
Note
****** Due to irregular updates of the product line, the content is subject to change without notice.
