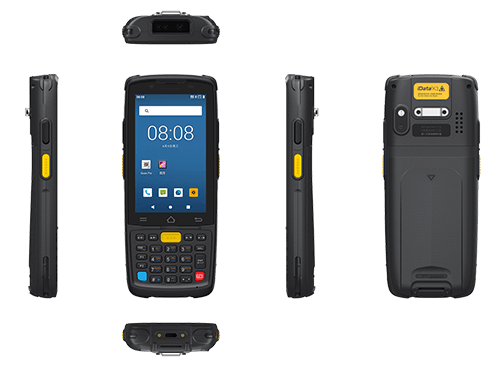

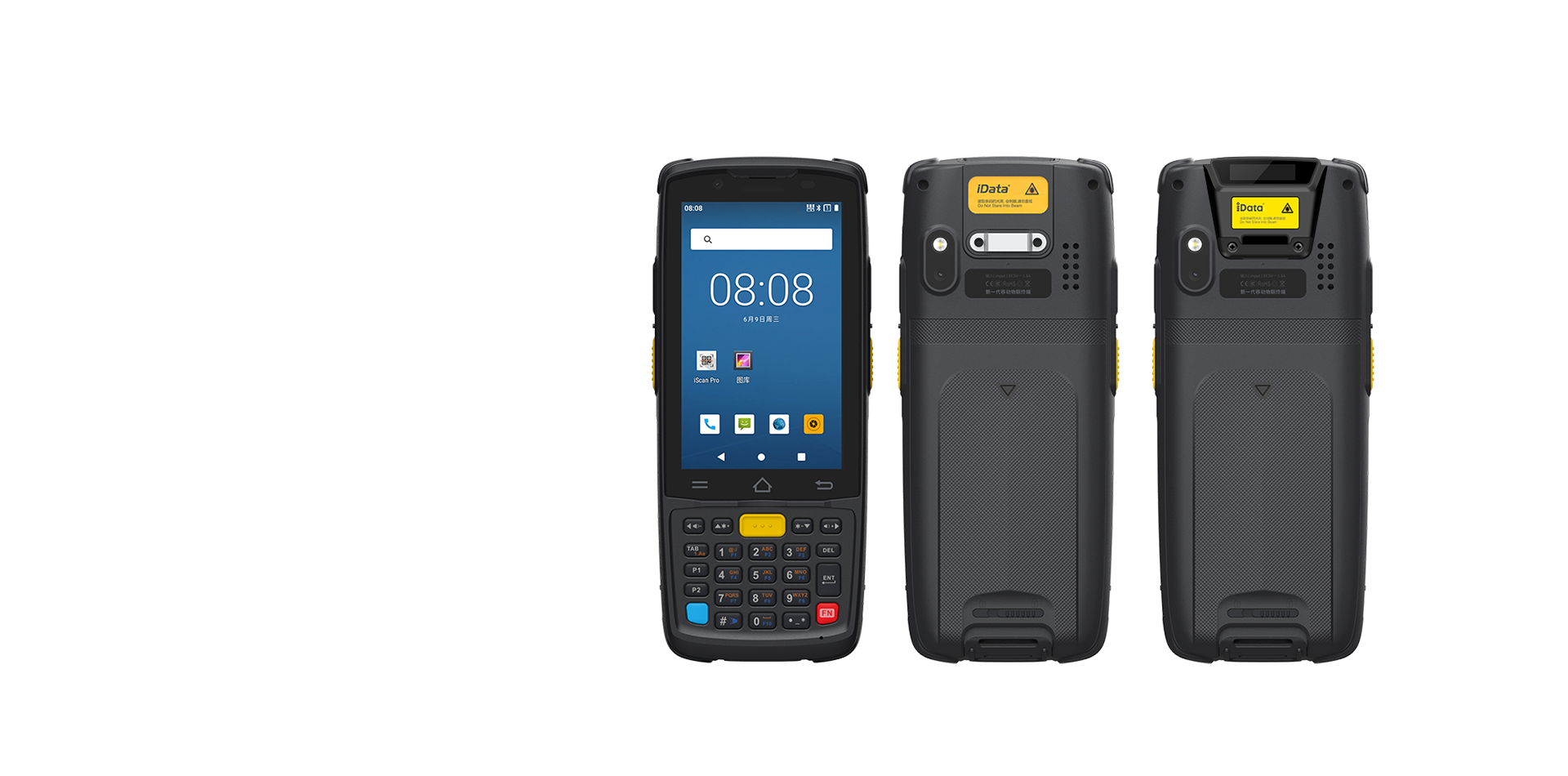

iData K3

Practical & User-friendly, Great Value

主图 右.png

Up to 180° Rotating screen

When you scan downwards,the screen will rotate accordingly,
Fatigue-free information reading for users.


The Golden Ratio Keyboard

Golden Ration core area design;
The scanning button locates right at the golden ratio;
Multiple fatigue-free gripping ways available

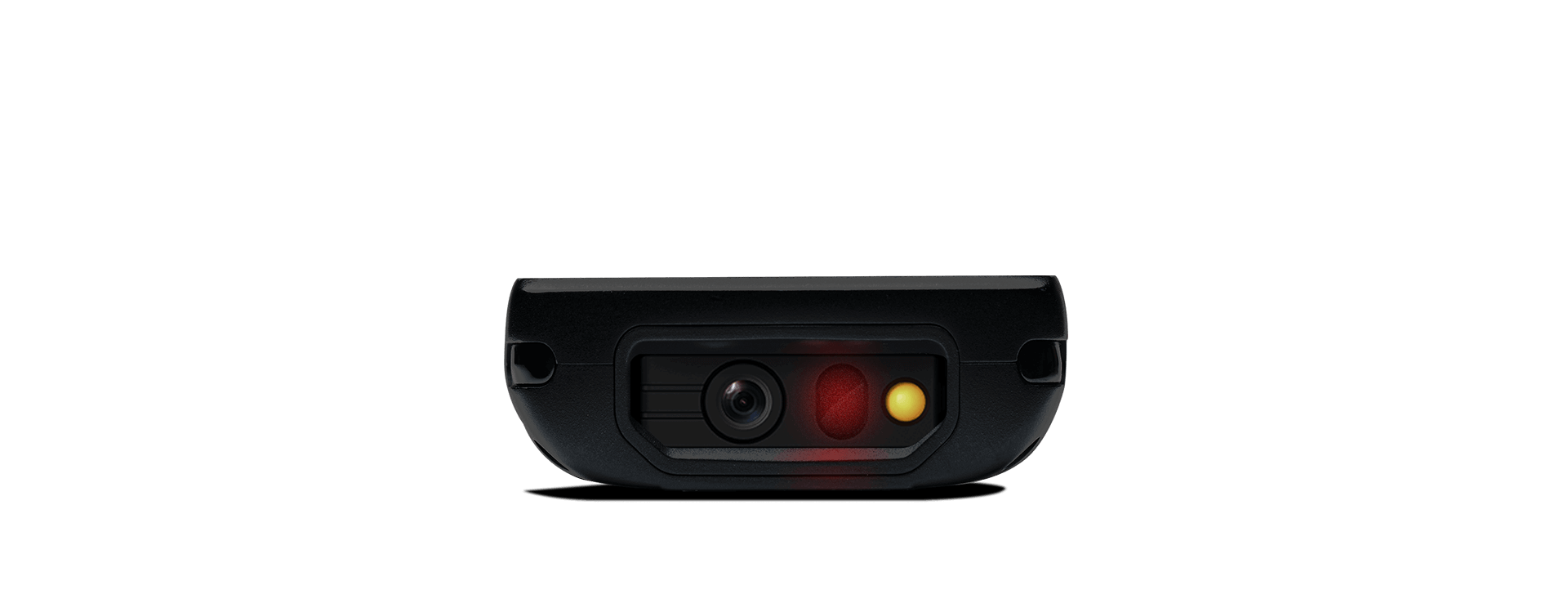

Outstanding scanning performance

60° tilt error tolerance, a wider reading range;
8m/s motion tolerance, a quicker reading rate for fast-moving barcodes;
Easy to read hard-to-recognize barcodes, including DPM, Metal etching barcodes

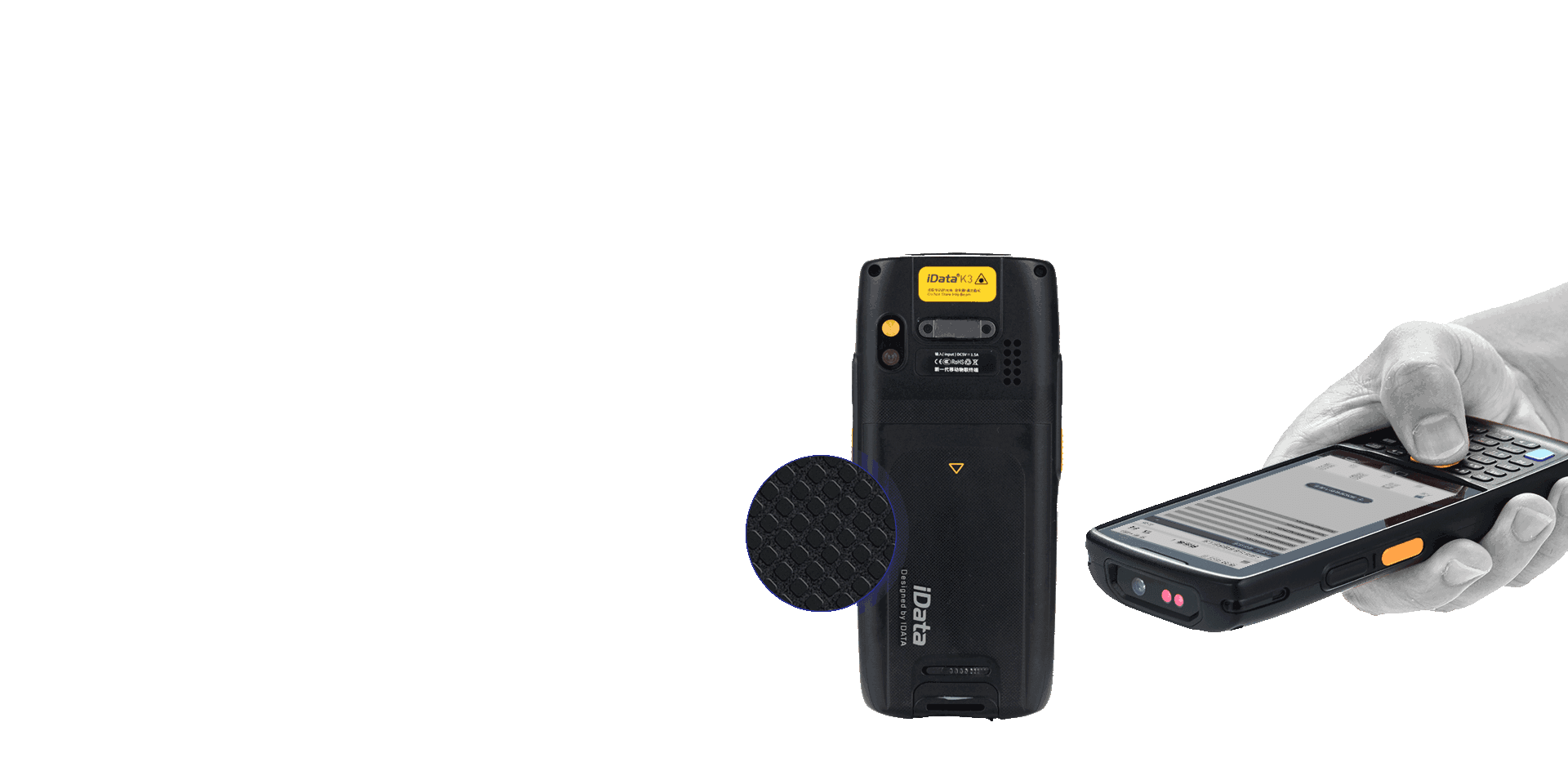

Ergonomic design

Special back texture design; Stronger friction & Anti-slip;
Perfect Screen-key ratio, a more comfortable way for operation

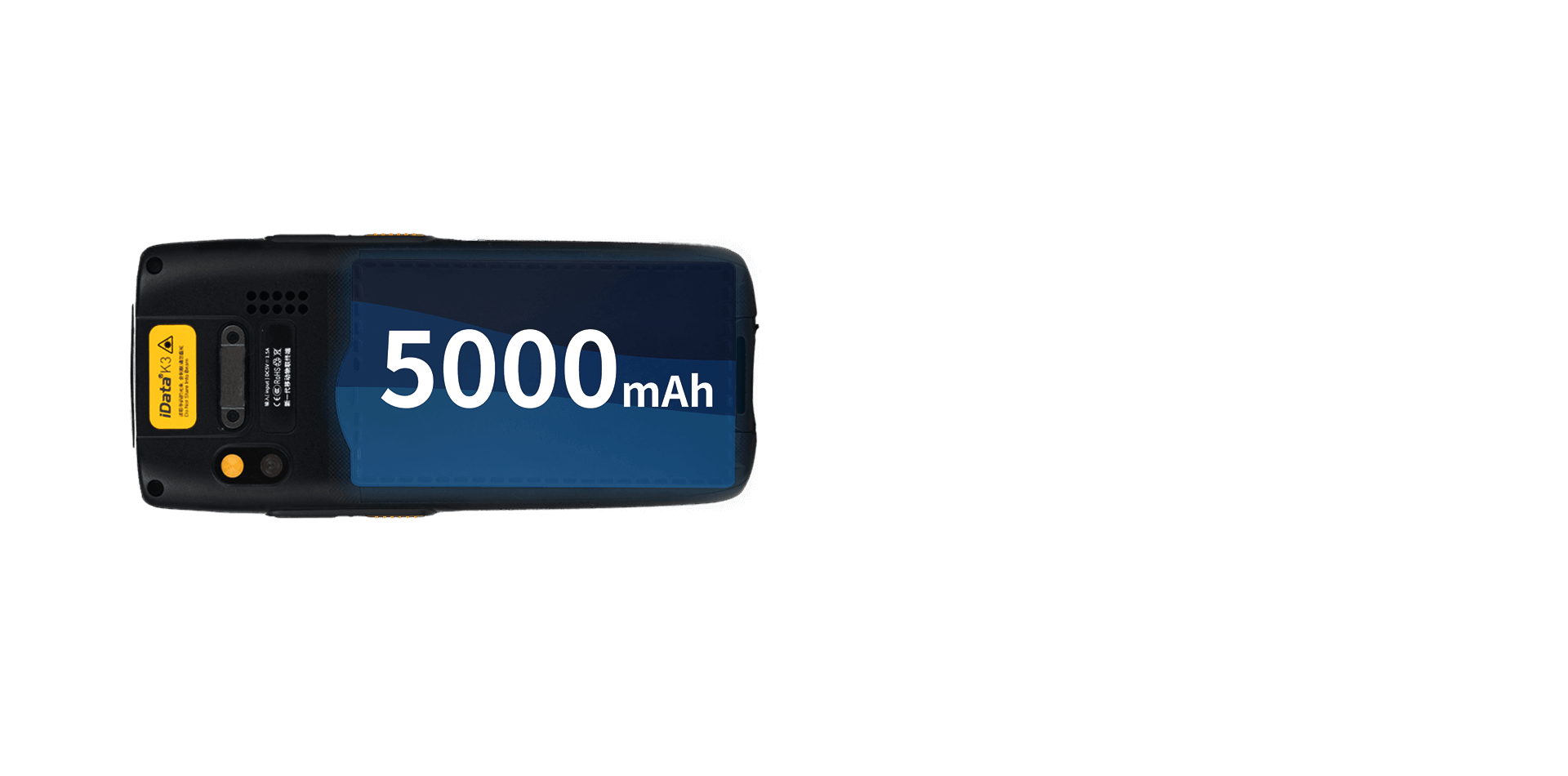

Long lasting batter life

5000mAh detachable large batter; It lasts up to 1.5 shift
It supports hot swap, no need to restart.


K3 Specifications

System Configuration
Processor Octa-core 2.0 GHz
Operating system Android 11.0
Memory (ROM+RAM) 32GB+3GB,64GB+4GB(optional)
SIM Dual SIM card
Expansion slot Micro SD card, up to 256 GB
Display screen 4-inch, resolution: 800*480 pixel
Touch screen Industrial capacitive screen, supporting two-point touch + gesture operation
Camera Rear 13 million pixel camera, front 5 million pixel camera(optional), support auto focus
Flashlight 800mA flashlight
Keyboard A total of 30 keys, front key*26, side scan key*2, side power key*1, side custom key*1
Battery "Lithium battery 3.85V power supply, 5000mAh, detachable, backup power support
*Executive standard: GB31241-2014"
Audio Built-in dual microphones (noise reduction microphone)
Charging Type-C charging and pin port charging, 18W fast charging
Prompts High-power speaker/vibration reminder/LED reminder
Vibrating motor Built-in vibrating motor
Sensor Gravity sensor (G-sensor) / proximity sensor / light sensor
Intercom function (optional) Supporting one-button PTT calls
Structure parameters
Dimension (LxWxD) 162mm*68mm*19mm
Weight 278g(Within battery)
Communication transmission
Wireless wide area network
(Network frequency)
Asia & Europe
2G:B2/B3/B5/B8
3G:WCDMA:B1/B5/B8,TD-SCDMA: B34/B39
4G:FDD-LTE:B1/B3/B5/B7/B8/B20,TDD-LTE:B34/B38/B39/B40/B41
美洲版
2G:B2/B3/B5
3G:B1/B2/B4/B5
4G:B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41
Wireless wide area network
(Data service)
GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TD-SCDMA/TDD-LTE/F DD-LTE
WLAN Wi-Fi 802.11a/b/g/n/r/ac(2.4G+5G dual-band Wi-Fi) ,Wi-Fi 5G PA
Bluetooth Bluetooth 5.0
GPS GPS/AGPS/Beidou/Galileo/GLONASS/QZSS
Operating Environment
Working temperature -20℃~60℃
*For your safety, please do not charge in a low temperature environment
Storage temperature -40℃~70℃(Without battery)
Humidity 5%~95% (no condensation)
Drop specification 1.5m concrete floor dropped several times
Roller drop specification 500 times of roller drops from a height of 0.5 meters
Protection level IP65
Electrostatic protection ±15KV (air discharge), ±8KV (contact discharge)
Scan engine
Barcode Support 1D/2D scanning engine
Scanning accuracy ≥3.33mil
Scanning angle Tilt ±60°, deflection ±60°, rotation 360°
Angular Field of View Horizontal: 44.3°; Vertical: 28.4°; Diagonal: 51°
Motion tolerance 8m/s
NFC (Optional)
Frequency 13.56MHz
Reading distance Within 30mm
Communication protocol ISO14443A/14443B/15693
Input/output Interface
USB interface Type-C (with earphone function) *1
OTG interface Supporting
Development support
Development language Java
API iScan API (Scan Development Kit), Device API (Device Management/Configuration Development Kit), Android standard interface
Development tool Eclipse/Android Studio
Accessories
Standard accessories USB cable*1, power adaptor*1, hand strap*1, wrist strap*1
Optional accessories charging cable,single cradle,waist bag
