Extra-large screen
Rugged Mobile Computer

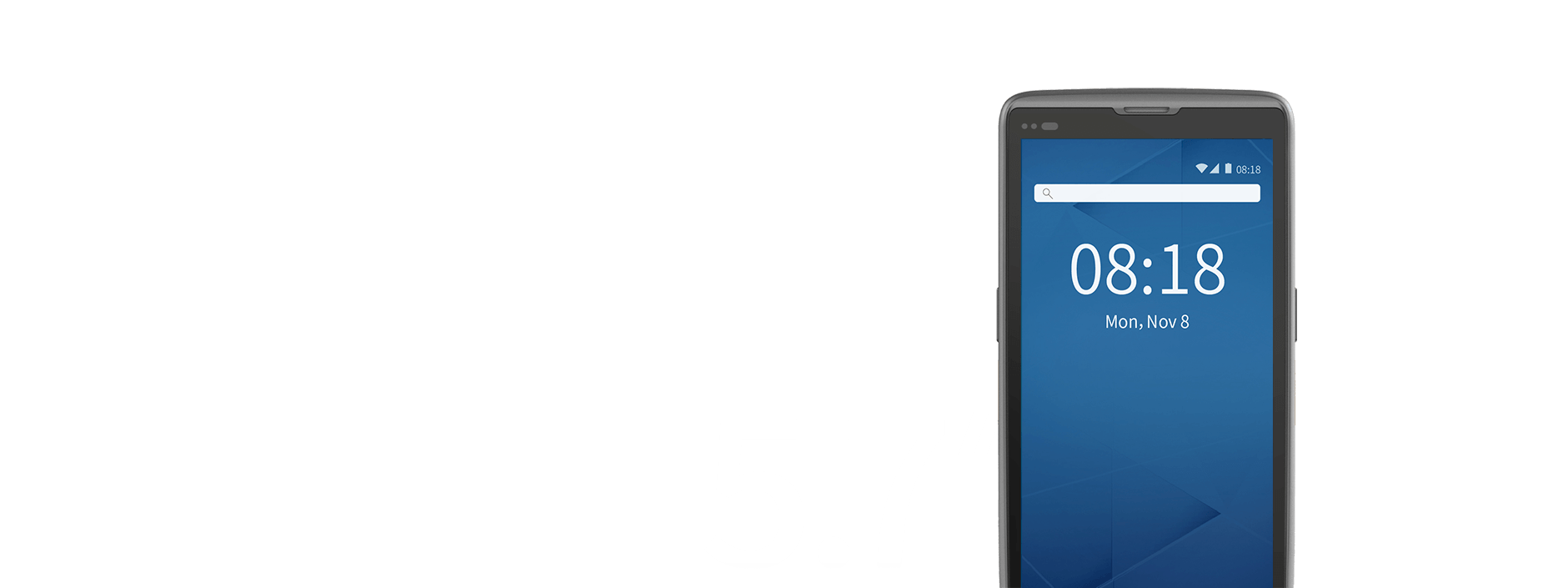

Large 5.7-inch screen: big and brand new display shows more comprehensive, let you have a better view and work experience.

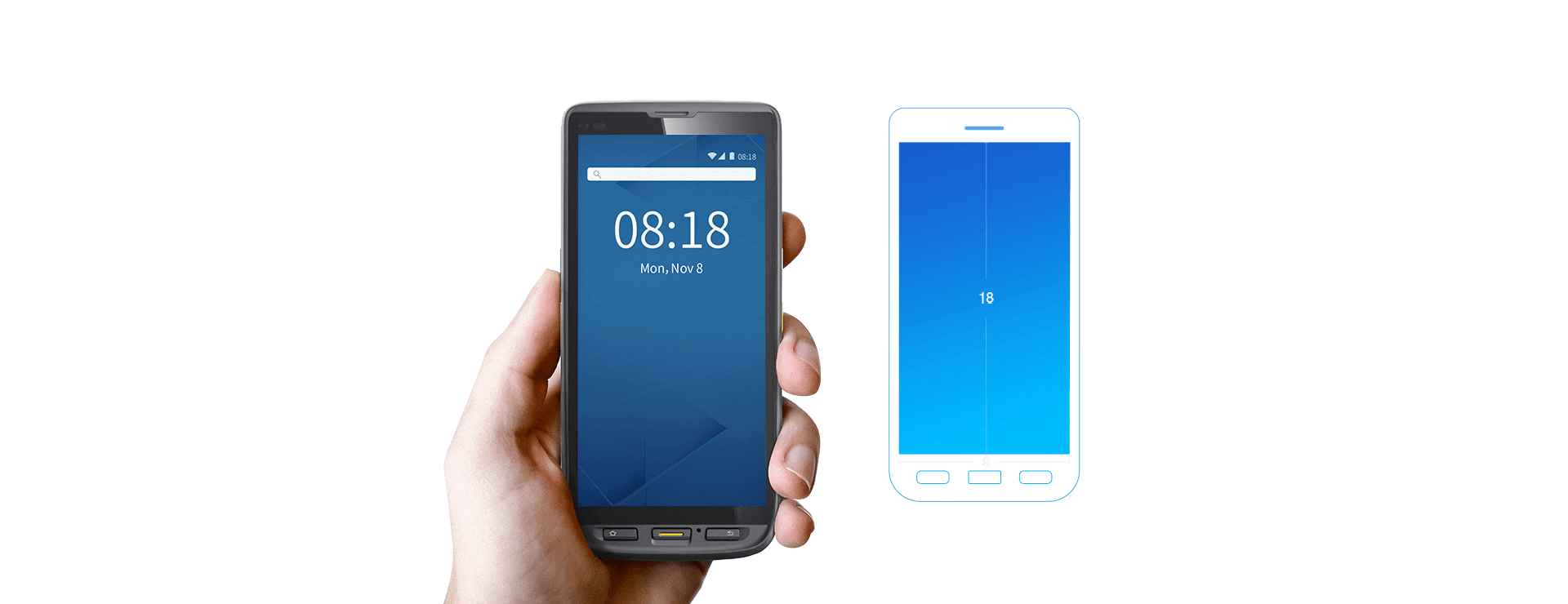

The leading 18:9 full view display: same vision as PAD and great handheld experience as a PDA

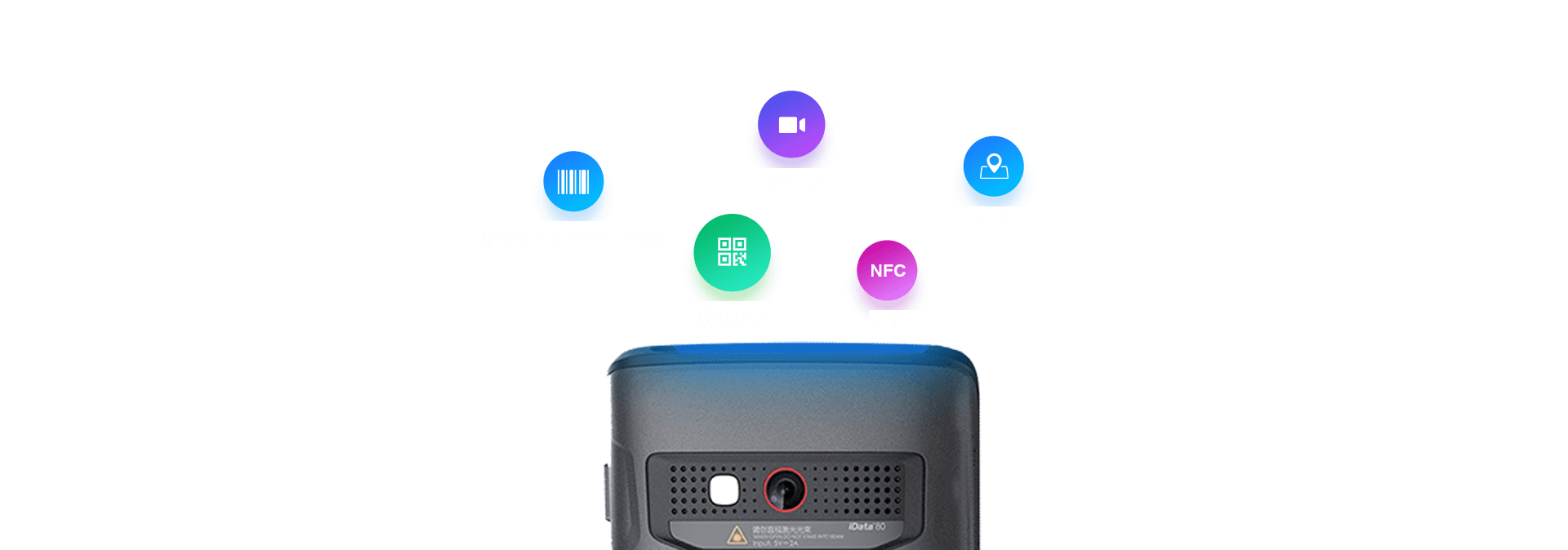

Compatible with multiple types of industrial-level scanning engines, satisfy the bar code scanning demands of different scenes;
Support multiple professional data automatic recognition and collection modes like NFC, GPS and cameras, help the users to
collect the business data accurately and rapidly.
Data 80s can meet a protection grade of IP65 bear 1.5-meter-high drop,
adapt to more complex and severe working environment.

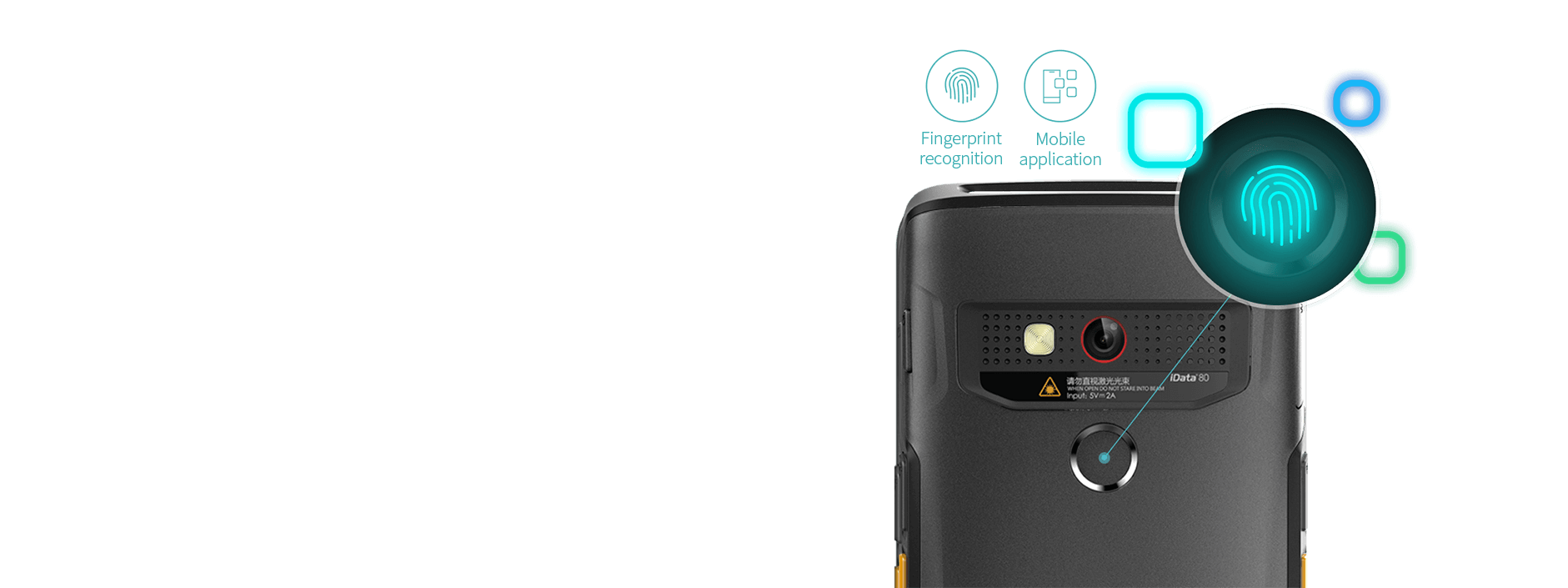

iData 80s boasts an ultra-fast fingerprint sensor so you can swift unlock the mobile computer;supports multiple
fingerprint recognition applications, satisfy all mobile application demands of Enterprises.
iData self-developed Enterprise apps (iSeries Apps), among many others,it includes the iLauncher (Kiosk or Lock-down mode) where admin can customize which apps and features are available for the users of the iData 80s
| System Configuration | |
| Processor | Octa-core 2.0 GHz |
| Operating system | Android 9.0 |
| Memory (ROM+RAM) | 16GB+2GB，64GB+4GB(optional） |
| SIM | Three select two card slots, support dual card dual standby *Three-choice two-card slot: Two cards can be placed at the same time, nano SIM card + nano SIM card/nano SIM card + TF card |
| Expansion slot | Micro SD card, up to 256 GB |
| Display screen | 5.7-inch, resolution: 1440*720 pixel |
| Touch screen | Industrial capacitive screen, supporting two-point touch + gesture operation |
| Camera | 8 MP autofocus camera in the back side (13 MP optional), LED flash |
| Flashlight | 800mA flashlight |
| Keyboard | 7 keys in total, front key*3, side scan key*2, side power key*1, side pupil light*1 |
| Battery | Lithium battery 3.8V, 4000mAh, non-removable *Executive standard: GB31241-2014 |
| Audio | Built-in microphone |
| Charging | Type-C charging and pin port charging, 18W fast charging |
| Prompts | Vibration reminder/LED reminder/audio reminder |
| Fingerprint recognition | Supporting |
| Vibrating motor | Built-in vibrating motor |
| Sensor | Gravity sensor (G-sensor) |
| Intercom function (optional) | Supporting one-button PTT calls |
| Structure parameters | |
| Dimension (LxWxD) | 164mm*79mm*15.5mm |
| Weight | 240g(Within battery) |
| Communication transmission | |
| Wireless wide area network (Network frequency) |
Asia & Europe： 2G：B2/B3/B5/B8 3G：WCDMA：B1/B5/B8，CDMA BC0，TD-SCDMA：B34/B39 4G：FDD-LTE：B1/B3/B5/B7/B8/B20，TDD-LTE：B34/B38/B39/B40/B41 America： 2G：B2/B3/B5 3G：B1/B2/B4/B5，CDMA&EVDO：BC0/BC1 (America) 4G：B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41 |
| Wireless wide area network (Data service) |
GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE |
| WLAN | Wi-Fi 802.11a/b/g/n/r/ac（2.4G+5G dual-band Wi-Fi） ,Wi-Fi 5G PA |
| Bluetooth | Bluetooth 5.0+BLE |
| GPS | GPS/AGPS/Beidou/Galileo/GLONASS/QZSS" |
| Operating Environment | |
| Working temperature | -20℃~60℃ *For your safety, please do not charge in a low temperature environment |
| Storage temperature | -40℃~60℃（Without battery） |
| Humidity | 0%～95% (no condensation) |
| Drop specification | 1.5m concrete floor dropped several times |
| Protection level | IP65 |
| Electrostatic protection | ±15KV (air discharge), ±8KV (contact discharge) |
| Scan engine | |
| Barcode | Support 1D/2D scanning engine |
| Scanning accuracy | ≥3.33mil |
| Scanning angle | Tilt ±60°, deflection ±60°, rotation 360° |
| Angular Field of View | Horizontal: 44.3°; Vertical: 28.4°; Diagonal: 51° |
| Motion tolerance | 8m/s |
| NFC (Optional) | |
| Frequency | 13.56MHz |
| Reading distance | Within 50mm |
| Communication protocol | ISO14443A/14443B/15693 |
| Input/output Interface | |
| USB interface | Type-C (with earphone function) *1 |
| OTG interface | Supporting |
| Development support | |
| Development language | Java |
| API | iScan API (Scan Development Kit), Device API (Device Management/Configuration Development Kit), Android standard interface |
| Development tool | Eclipse/Android Studio |
| Accessories | |
| Optional accessories | charging cable，device 4-slot charging cradle，protective case，waist bag |
| Standard accessories | USB cable*1, power adaptor*1, SIngle charging cradle*1, hand strap*1, Protective film*1 |
| Note | |
| 1 | Due to irregular updates of the product line, the content is subject to change without notice. |
